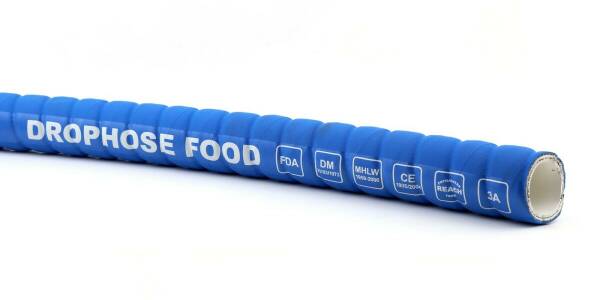

DROPHOSE FOOD
Drophose hoses guarantee a bending radius of once the internal diameter of the hose. Suitable for drinking water, wine, beer, fruit juice, alcoholic beverages up to 92% and fat-containing products. Up to a temperature of 23°C, the hose is even suitable for max. 96,5% alcohol. The hose is Phthalate-free. Complies with FDA 21 CFR 177.2600, DM 21.03.73 E SEGUENTI, EUROPEAN REGLEMENT 1935/2004/CE. Also suitable as a tanker hose. Hose is tested to 1907/2006/CE (REACH) en 3A Sanitary Standard Class II.
Due to the butyl innertube the hose is very suitable for CIP cleaning.
Properties
Material inner wall |
Butyl/IIR |
Characteristics outer wall |
Ozone- and UV resistant, Weather- and ageing resistant, Abrasion resistant, Low permeability of gas, Chemical resistant |
Type reinforcements |
Strong synthetic textile reinforcements, Steel spiral |
Temperature range °C |
-40°C/+120°C (+150°C tot 30 min.) |
Norm |
FDA, 1935/2004/CE, 1907/2006CE (REACH), 3A Sanitary Standard Class II |
